RVC Carbon Foam Panel

RVC Carbon Foam Panel
Price : USD 10.00 - 50.00 / Pack
Get Best Price

MOQ : 100 Piece

Business Type Manufacturer, Exporter, Supplier
Brand Name Nanochemazone

Preferred Buyer From

Location Worldwide

3% = relative density of panel (97% air void)

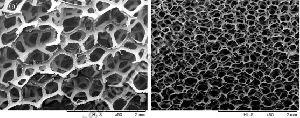

Why is Aritech® Reticulated Vitreous Carbon (RVC) foam so special?

Aritech® manufacture and distribute worldwide the different shape and size of RVC foam of unique and repeatability properties by a patented technology on affordable prices for research and industrial applications in various sectors. Aritech® RVC is a rigid, highly porous and permeable structure and has a controlled density of carbon per unit volume. The matrix of cells and ligaments is completely repeatable, regular, and uniform throughout the entirety of the material.



Applications :

  • Porous Electrodes
  • High Temperature Insulation
  • High Temperature Oven Racking
  • Filters
  • Demisters
  • Storage Batteries
  • Scaffolds
  • Semiconductor Manufacturing
  • Acoustic Control



Vitreous or Glassy carbon is a form of pure carbon produced by the thermal decomposition of a three-dimensionally crosslinked polymer. It has a high flexural strength. The zero open porosity gives a low permeability to gases. Glassy carbon has excellent resistance to a wide range of aggressive chemical environments and can, therefore, be used as an alternative material to precious metals for laboratory equipment and, for example, for electrodes in polarography.



Vitreous Carbon Foam has an open pore structure and extremely high porosity, giving a high surface area and low resistance to fluid flow. It is chemically inert in non-oxidising environments over a wide temperature range, maintains strength at high temperatures and is thermally insulating yet electrically conducting. Applications include use as porous electrodes, thermal insulation, filtration, substrate support and acoustic control.



Unique Features :

  • Low Density
  • High Temperature Stability
  • High Strength to Weight Ratio
  • High Surface area to Volume Ratio
  • isotropic load response
  • controlled stress-strain Characteristic
  • controlled density of carbon per unit volume
  • completely repeatable, regular, and uniform
  • Thermally Insulating
  • Highly electrically conductive
  • Low Thermal expansion
  • High Quality RVC Density



Application areas

Microscopy and Microanalysis, Metallurgical, Laboratory Research, Vacuum Evaporation, Semiconductor & Electronics, Nuclear, Aerospace



Other Unique Features

The key features are: High purity, resistance in inert gas or vacuum up to 3000°C and in air up to 600°C, corrosion resistance, Impermeability to gas and liquids, no open porosity, high hardness and strength, low density, extreme resistance to thermal shock, good electrical conductivity, no wetting by many saline, metallic and ceramic melts, physical and chemical properties are isotropic.



Please enquire for other foams having different thicknesses, porosities and sizes.

If the item shown is not exactly what you require please let us know by sending us a message

Yes! I am interested


Physical and Chemical Properties

Compression Strength 15-75 psi (0.10-0.52 MPa)
Tensile Strength 25-50 psi (0.17-0.34 MPa)
Shear Strength 4.4×103  psi (30.3 Mpa)
Mohs Hardness 6-7 Mohs
Specific Heat 0.3  BTU/lb  °F (1.26  J/g  °C)
Shear Modulus 4.4 × 103  psi (30.3 MPa)
Modulus of Elasticity (Tension) 14.6 × 103 psi (101.84 MPa)
Shear Modulus 4.4 × 103 psi
Bulk Thermal Conductivity 0.021 - 0.029  BTU/ft ·hr·°F (0.033 - 0.050  W/m  °C)
Coefficient of Thermal Expansion At (0-100°C) 1.2 × 10-6  in/in°F (2.2 × 10-6 m/m°C)
At (100-1000°C) 1.8 × 10-6 in/in°F (3.2 × 10-6 m/m°C)
Bulk Resistivity 12.7 × 10-2  ohm · in (32.3 × 10-2  ohm · cm)
Temperature In air 600°F (315°C)
Limitations Inert environment 6330°F (3499°C)
Pore Sizes 0.040″,  customization is also possible
